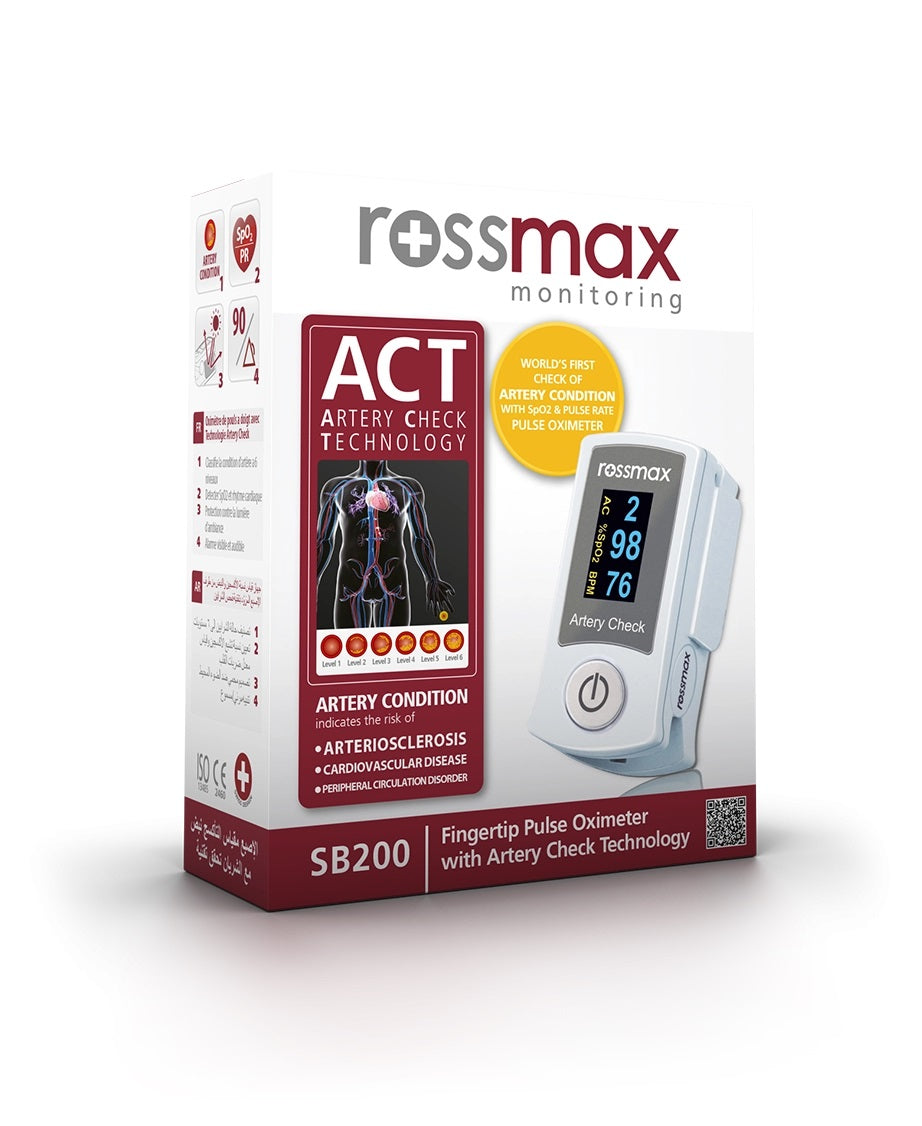

Rossmax SB200 Fingertip Pulse Oximeter with ACT Bluetooth
Rossmax SB200 Fingertip Pulse Oximeter with ACT Bluetooth analyzing the pulse and SpO2 signals and determines the actually prevailing stiffness of the artery (Artery Condition). ACT further comprehensively classifies the arterial condition into 6 levels and presents the result by an intuitive graphical visualization. Pulse rate, SpO2 and the artery condition are available at your fingertip.
FEATURES
- Artery Check Technology (ACT) embedded
- Instant readings of SpO2, pulse rate and artery condition in 1 minute
- Shielded Design blocks Ambient Light
- Biocompatibility & Anti-Allergic Design
- Pulse Strength Indicator
- Visible & audible alarm
- Two way, two color OLED display
- Cord attached
Artery condition is associated with the potential presence of the following diseases:
- Arteriosclerosis
- Peripheral circulation disorder
- A wide range of cardiovascular diseases
ACT (Artery Check Technology)
Analysis the pulse and SpO2 signals and determines the actually prevailing stiffness of the artery (Artery Condition). ACT further comprehensively classifies the arterial condition into 6 levels and presents the result by an intuitive graphical visualisation. Pulse rate, SpO2 and the artery condition are available at your fingertip.
DIRECTION
1. Open the clip; press the Power On/Off button.
2. Information of software version appears. Insert one finger (left hand middle finger is recommended), nail side up, into the finger opening of the pulse oximeter.
Note: If no finger insert, the device will auto shut off after 30 seconds.
3. The display shows , pulse oximeter begins its measurement.
Note: Make sure the finger is lying flat. Do not shake and keep body steady during measurement.
4. Your SpO2 and pulse rate values will appear on the screen after few seconds and artery check result will appear on screen after 30 - 60 seconds.
Note: If artery check result cannot be detected, "V" will appear on the screen.
5. Remove the finger, the screen will show artery check level.
6. Press button shortly to switch the display to the 3 parameters (artery check, SpO2 and pulse rate).
SPECIFICATION
Measurement Range | SpO2: 35%~99% – PR: 30~250 bpm
Precision | SpO2: 70%~99%; ±2%; 35%~69% (unspecified)
Pulse rate | 30~250bpm; ±3
Accesories
- Manual
- Battery
- Fingertip Pulse Oximeter with "ACT"
- Dimensions: 31 x 23 x 5 cm
- Weight: 1430g
WARNING
This is a home healthcare product only, and it is not intended to serve as a substitute for the advice of a healthcare professional.
